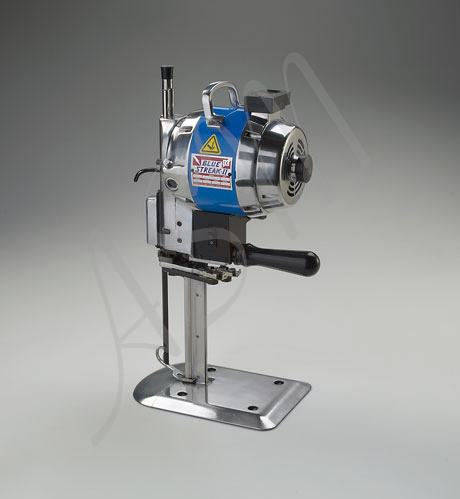

Eastman Blue Streak Straight Knife Cutting Machine

Eastman Blue Streak Straight Knife Cutting Machine

The Eastman line of straight knife cutting machines set industry standards for quality, performance, and engineering. The Blue Streak series of cloth cutting machines are designed to provide optimal performance whether cutting intricate jobs with small tight radius cuts or patterns that have long, clean cuts. Capable of cutting denim, silk, cotton, sailcloth, synthetics, fiberglass, and other technical textiles easily and effortlessly.

Eastman straight knives are available in a wide variety of strokes, heights and electrical configurations to make your cutting department as effective and productive as possible.

Design Features

• Power to weight ratio offers easy handling and maneuvering, machines glide effortlessly around the most tightest radius cuts
• A low-profile baseplate and narrow standard make cutting intricate patterns and turns simple
• Perfect fit and continuous running with cross heads, crank and knife slides that are machined to exact tolerance
• Low center of gravity allows for simple and safe handling of the machine
• Ease of maintenance requiring only daily lubrication with the easy to use One Shot single-reservoir oiling system

Additional Information

Motors: 110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz 380V, 3ph, 50Hz Standard: Single Speed Optional: Dual Speed

Horsepower: .65hp, 1ph .93hp, 3ph

Weight: 34 lbs. (15.4kg)

Blades: Standard: Carbon Steel Optional: High Speed Steel, PTFE Coated, Wave Edge, Wave Groove, Angled Tip

Options: Micro Fog, Plastic Master, Auto Stop Note: Autostop, Micro Fog and Plastic Master are only available in 6 in. and 8 in.

Stroke Size: 1.125 in. (2.86cm) 1.25 in. (3.18cm) 1.5 in. (3.81cm) 1.75 in. (4.45cm)

Blade Size: 5 in. (12.7cm) 6 in (15.2 cm) 7 in. (17.7 cm) 8 in. (20.3 cm) 9 in. (22.8 cm) 10 in. (25.4 cm) 11.5 in. (29.2 cm) 13 in. (33 cm)

Cutting Capacity: 3.5 in (8.9cm) 4.5 in. (11.4cm) 5.5 in (13.9cm) 6.5 in (16.5cm) 7.5 in. (19.1cm) 8.5 in. (21.5cm) 10 in. (25.4cm) 11.5 in. (29.2cm)

Disclaimer: All indicated specifications, dimensions, weights and performance data are approximate and subject to change without notice.
